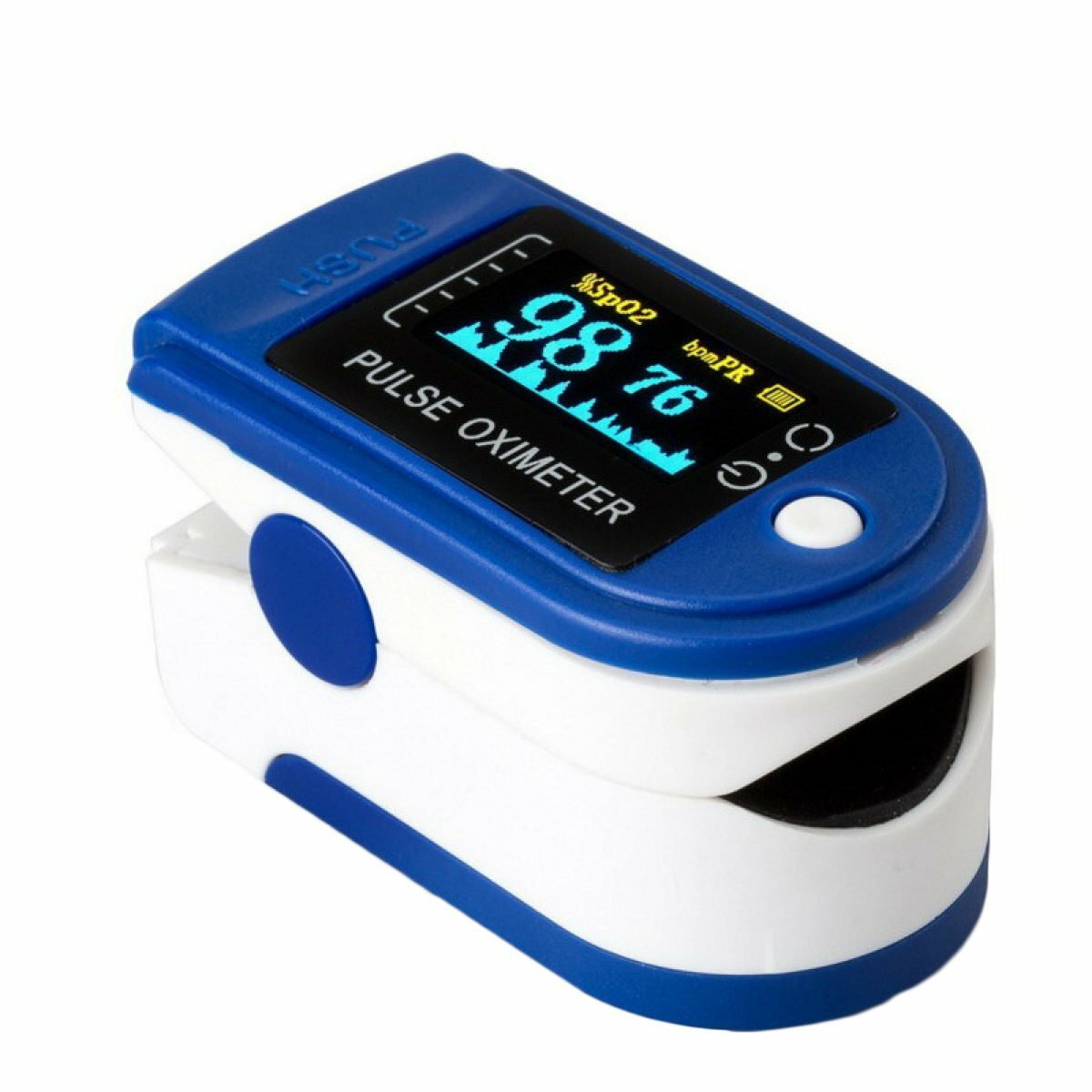

Pulse Oximeter CMS50D
Finger Oximeter, Oxygen Meter, Oxygen Meters, Blood Oxygen Monitor, CMS-50D,CMS50D
FDA 510k Approved
Free case(soft zippered case) included
Free neck strap
Warranty: 1 year
Features
* Integrated with SPO2 probe and processing display module.
* Can measure SPO2 and PR accurately
* SPO2 and PR display, PR waveform and bar graph display
* Battery voltage low indication
Color OLED Display
* Four levels adjustable brightness
* Low power consumption; shut off automatically when no signal
* Small volume(57(L) * 31(W) * 32(H) mm)?light,convenient to carry
* Can work more than 30 hours continuously
Technical Parameters
* 1.3' double Color OLED display, resolution 160*64
* SPO2 measuring range: 35-100%
* Pulse Ratio:30-254 BPM
* Pulse Waveform display: bar graph display
* Battery indication: OLED display
* Power: 1.5V(A A A size )Alkali Batteries*2
* Interference resistance capacity against ambient light and measurement performance at low perfusion
* Adaptable range:2.6V-3.6V
* Working current:<=25mA
* Resolution: SPO2 : 1% Pulse Rate: 1bpm
* Accuracy: (+/-)2% (70%-99%), unspecified (<70%) for SPO2, (+/-)2BPM or(+/-)2% (select larger) for pulse ratio
* Measurement at Low Perfusion: The values of SPO2 and pulse rate can be displayed properly when pulse saturation is at 0.4%.
* Resistance to surrounding light: Deviation is smaller than (+,-)1% between value of Oxyhemoglobin measured in natural lighting indoor condition and present lighting sources and that measured in dark room.
* Automatic shutdown function:The device will power off automatically within 5 seconds when there is no finger in the device. When working,the display direction can be changed by pressing the button shortly.There are six modes of direction. During working time,long press can change the lightness of the screen.
